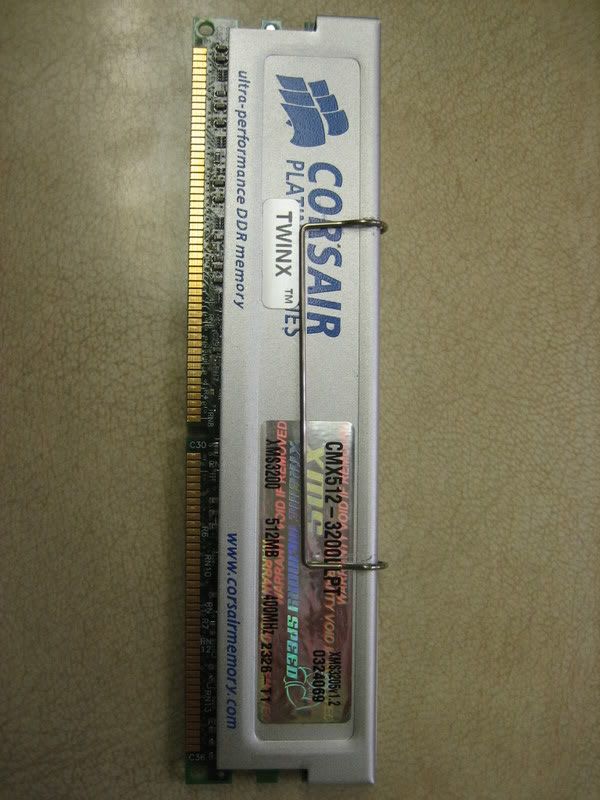

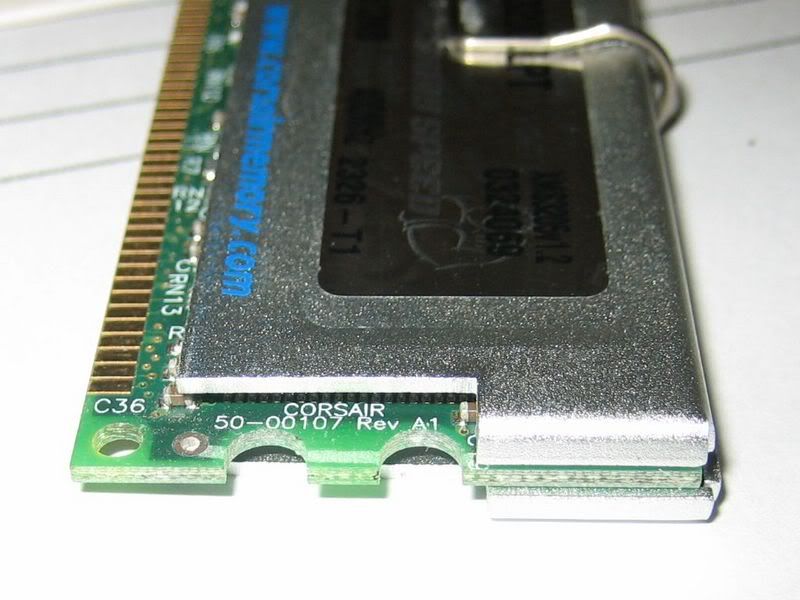

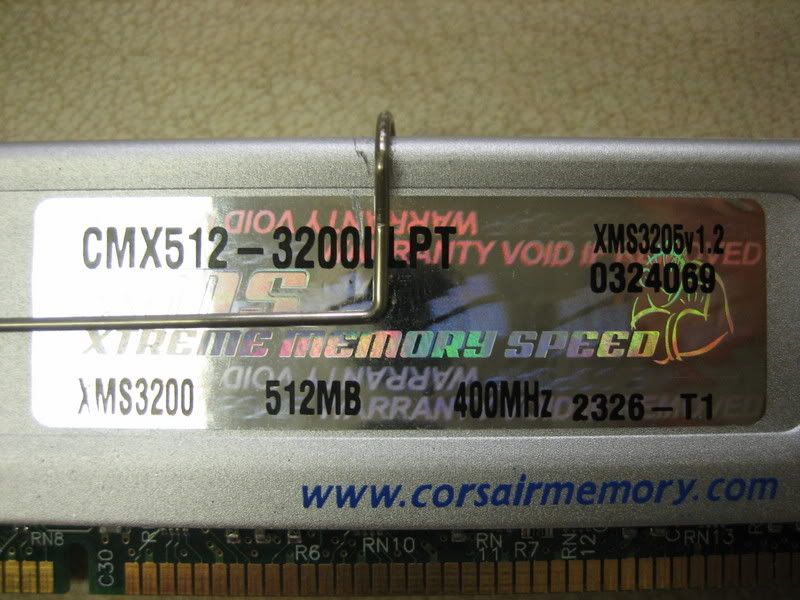

poot1873 Posted October 16, 2007 Share Posted October 16, 2007 I've been given what I believe to be half of a TwinX kit, 1 stick of CMX512-3200LLPT. The SPD timings shoud be 6 2 3 2 but it won't run even boot up with those settings, giving a CMOS ROM error. The SPD timings show 8 3 3 2.5 and it does not even show the manufacturers name or part number like my other Corsair modules do on CPU-Z. http://img.photobucket.com/albums/v186/pootang/CPUZ.jpg The memory does not look like its a copy, but I could be wrong, see the below photos. http://img.photobucket.com/albums/v186/pootang/IMG_1370.jpg http://img.photobucket.com/albums/v186/pootang/IMG_1371.jpg http://img.photobucket.com/albums/v186/pootang/IMG_1376.jpg Do you think the memory could be faulty or counterfeit ? PC Specs: Asus A7N8X-E AMD XP 3000+ Barton (Not overclocked) ATi 9800 Pro Link to comment Share on other sites More sharing options...
Wired Posted October 16, 2007 Share Posted October 16, 2007 are you running them @ 2.75v? Link to comment Share on other sites More sharing options...
poot1873 Posted October 16, 2007 Author Share Posted October 16, 2007 No 2.6v, should I change it to 2.75v ? Link to comment Share on other sites More sharing options...
Corsair Employees RAM GUY Posted October 16, 2007 Corsair Employees Share Posted October 16, 2007 Bump the voltage up to 2.75 volts, and let me know if you are still having problems running at 2-3-2-6. Link to comment Share on other sites More sharing options...
poot1873 Posted October 17, 2007 Author Share Posted October 17, 2007 I've only options to set the voltage at 2.6, 2.7, 2.8 & 2.9v, no 2.75v. At 2.7 it still does not boot using 2-3-2-6 timings, still getting a CMOS Checksum error ? The system boots fine using my original Corsair memory. Link to comment Share on other sites More sharing options...
Wired Posted October 17, 2007 Share Posted October 17, 2007 try 2.8 and 2.9 Link to comment Share on other sites More sharing options...
poot1873 Posted October 17, 2007 Author Share Posted October 17, 2007 I've got it posting at 2.8 but only if I set the frequency to auto rather than SPD resulting with 166mhz rather than 200mhz. Why do you think the SPD does not set the ram to the correct settings ? Link to comment Share on other sites More sharing options...
Corsair Employees RAM GUY Posted October 17, 2007 Corsair Employees Share Posted October 17, 2007 I would suggest that you try the modules individually. If both modules will not function properly at the tested settings there may be some other issue, however if one works, and the other does not, we will want to have them replaced for you. Link to comment Share on other sites More sharing options...
poot1873 Posted October 17, 2007 Author Share Posted October 17, 2007 I cannot test both modules as I only have half of the twinX kit, the other module is missing/lost, I was given it by my brother, he thinks his other half may have binned it by mistake. Link to comment Share on other sites More sharing options...
poot1873 Posted October 17, 2007 Author Share Posted October 17, 2007 I cannot test both modules as I only have half of the twinX kit, the other module is missing/lost, I was given it by my brother, he thinks his other half may have binned it by mistake. Link to comment Share on other sites More sharing options...
Corsair Employees RAM GUY Posted October 17, 2007 Corsair Employees Share Posted October 17, 2007 If possible, try testing the module on a different system. If you would like to get it replaced, please follow the link in my signature “I think I have a bad part! Or “Tech Support Express” and we will be happy to replace them or it, please note that you are posting from the forum! Link to comment Share on other sites More sharing options...
Corsair Employees RAM GUY Posted October 17, 2007 Corsair Employees Share Posted October 17, 2007 If possible, try testing the module on a different system. If you would like to get it replaced, please follow the link in my signature “I think I have a bad part! Or “Tech Support Express” and we will be happy to replace them or it, please note that you are posting from the forum! Link to comment Share on other sites More sharing options...
poot1873 Posted October 23, 2007 Author Share Posted October 23, 2007 I tested the module on my other PC but the same timings occur, so I've submitted a RMA request. Link to comment Share on other sites More sharing options...
Corsair Employees RAM GUY Posted October 23, 2007 Corsair Employees Share Posted October 23, 2007 Thanks for the update! Link to comment Share on other sites More sharing options...
poot1873 Posted October 27, 2007 Author Share Posted October 27, 2007 I've still not had any RMA number of instructions on what to do next. I got comfirmation of the request on the 19th and it said if I had not received the number and instructions on what to do next within 1 business day to email them. I emailed them a couple of days ago but have still had no reply. Any ideas whats going on ? Link to comment Share on other sites More sharing options...
Corsair Employees RAM GUY Posted October 29, 2007 Corsair Employees Share Posted October 29, 2007 It will take about 24-48 hours excluding weekends and holidays if not please either call our customer service at 888-222-4346 or 510-657-8747 and dial "0" 8:00 AM to 5:00 PM Pacific time Monday Threw Friday excluding Holidays or follow the link in my signature "If you have submitted the RMA using the on line form and have not got a reply!" Link to comment Share on other sites More sharing options...
